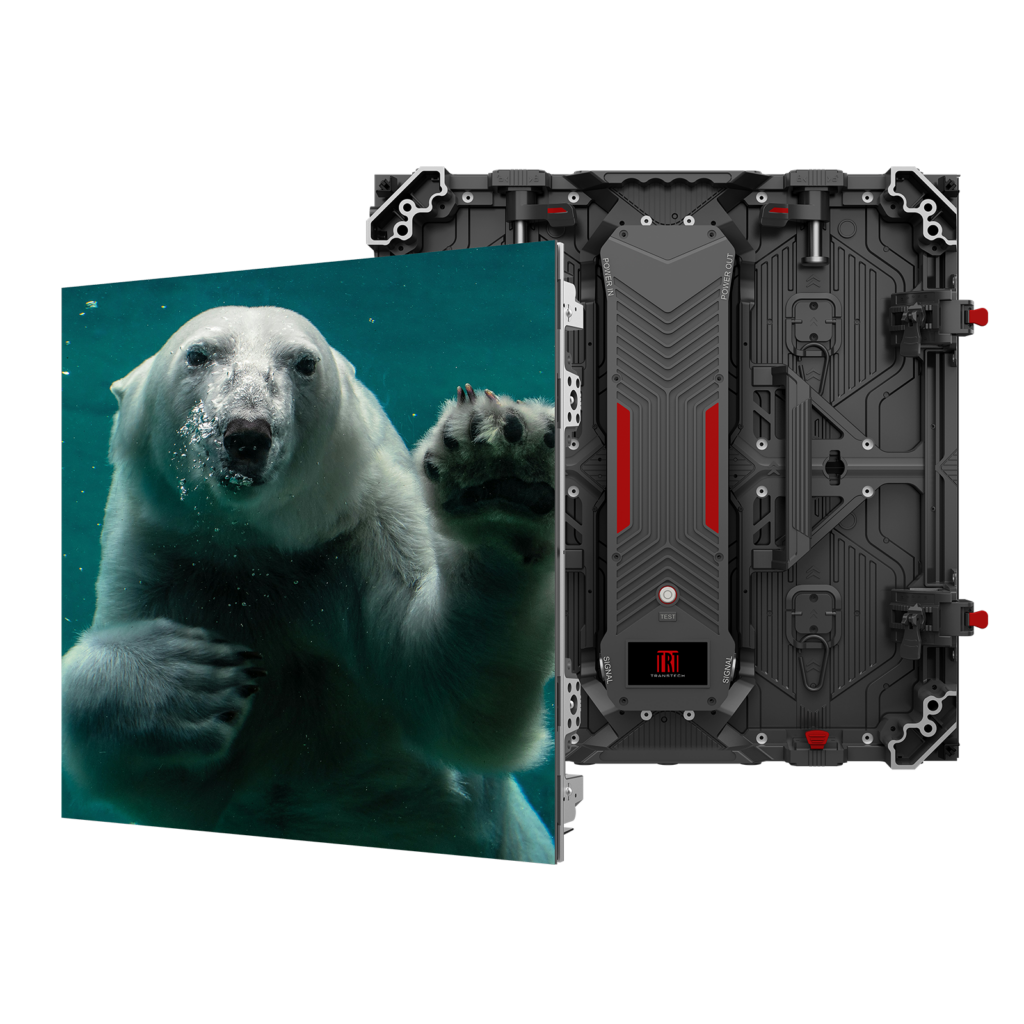

Explorer III

For outdoor fixed and rental installations

Outdoor COB / SMD

Technology

1.5 / 1.9 / 2.6 / 3.9

Pixel pitch, mm

500 x 500 x 63

Cabinet size (W*H*D), mm

3,500 / 6,000

Brightness COB / SMD , nits

IP65 / IP65

IP Rating Front / Rare

720 W / 240 W

COB Power consumption max/avg. (per m2)

600 W / 200 W

SMD Power consumption max/avg. (per m2)

Applications

Retail and Advertisement

Hier klicken

Transportation HUBs

Hier klicken

Stadiums and Sports facilities

Hier klicken

Recreation

Hier klicken

navigation and wayfinding

Hier klicken

Urban digital displays

Hier klicken

Smart city displays

Hier klicken

Urban points of attraction

Hier klicken

Explorer III is an outdoor display solution available in both COB and SMD versions, allowing the product to be adapted for different project requirements.

Technology overview

Chip On Board (COB) technology mounts the light-emitting chip directly onto the PCB board. This method effectively eliminates pixel failure issues caused by rack pins. Unlike the traditional SMD package, COB technology bypasses the complex processes of LED chip fabrication and reflow soldering. This significantly enhances the stability of the lamp beads and provides superior protection.

LED CHIP

Resin Seal

PCB

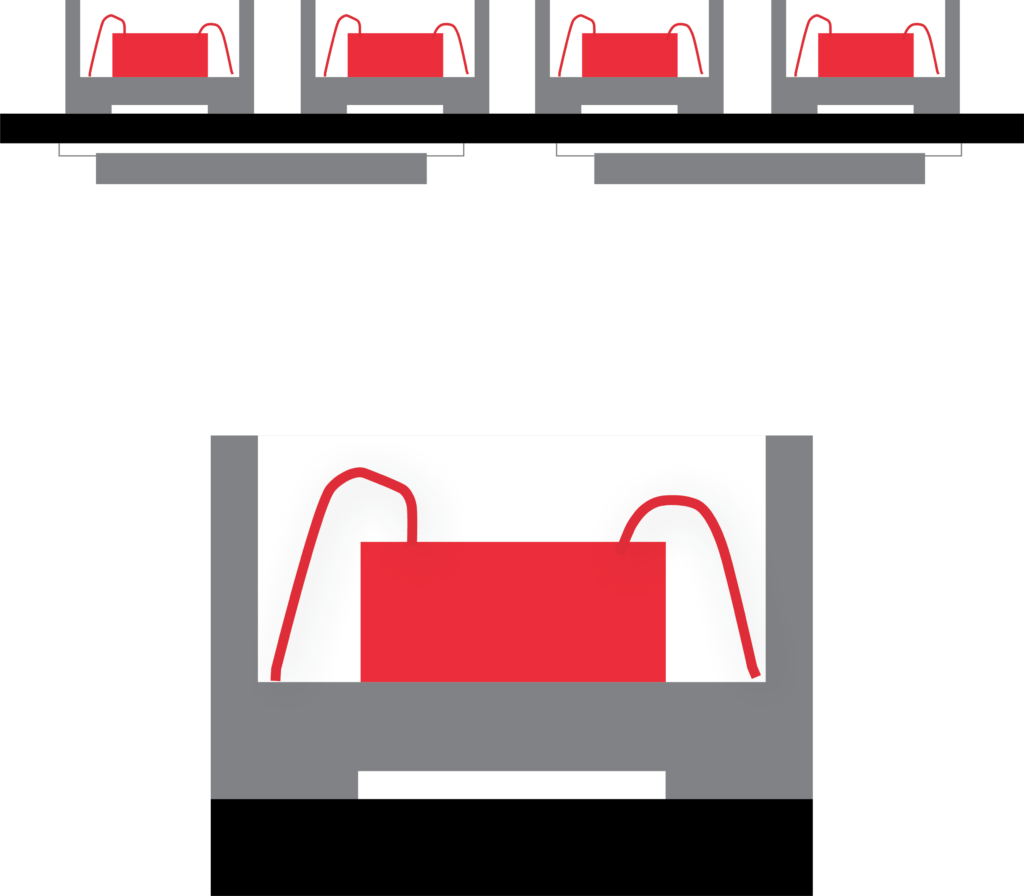

SMD (Surface Mounted Device) technology ensures outstanding reliability and precision by mounting the LEDs directly onto the PCB surface. This advanced design provides excellent resistance to humidity and mechanical stress, resulting in superior durability and consistent performance. With precise color accuracy and minimal failure rates, SMD technology delivers long-lasting stability and brightness for both indoor and outdoor applications.

LED CHIP

Resin Seal

PCB

Substrat

Cabinet design

Easy installation and maintenance

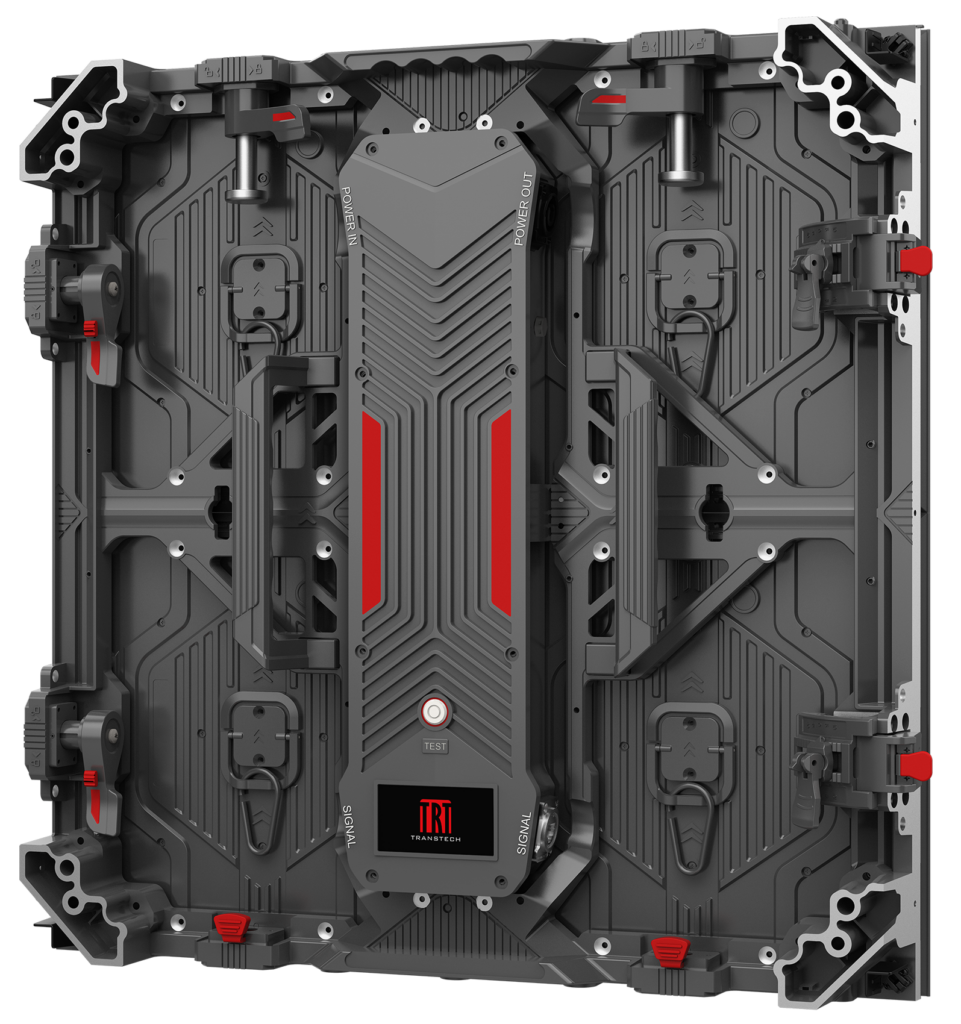

The cabinet is equipped with quick-install locks, curvature locks, and ratchet locks, making assembly fast and efficient. Installation can be completed by a single person. A breathing valve is located on the side of the power box to maintain pressure balance between internal and external components. This vent helps regulate airflow and prevent moisture buildup inside the display, reducing the risk of malfunctions.

Installation configurations

Explorer III series can be easily installed in various configurations, including standard, corner, and curved setups, offering flexible solutions and seamless splicing to suit any space and design needs.

Standard configuration

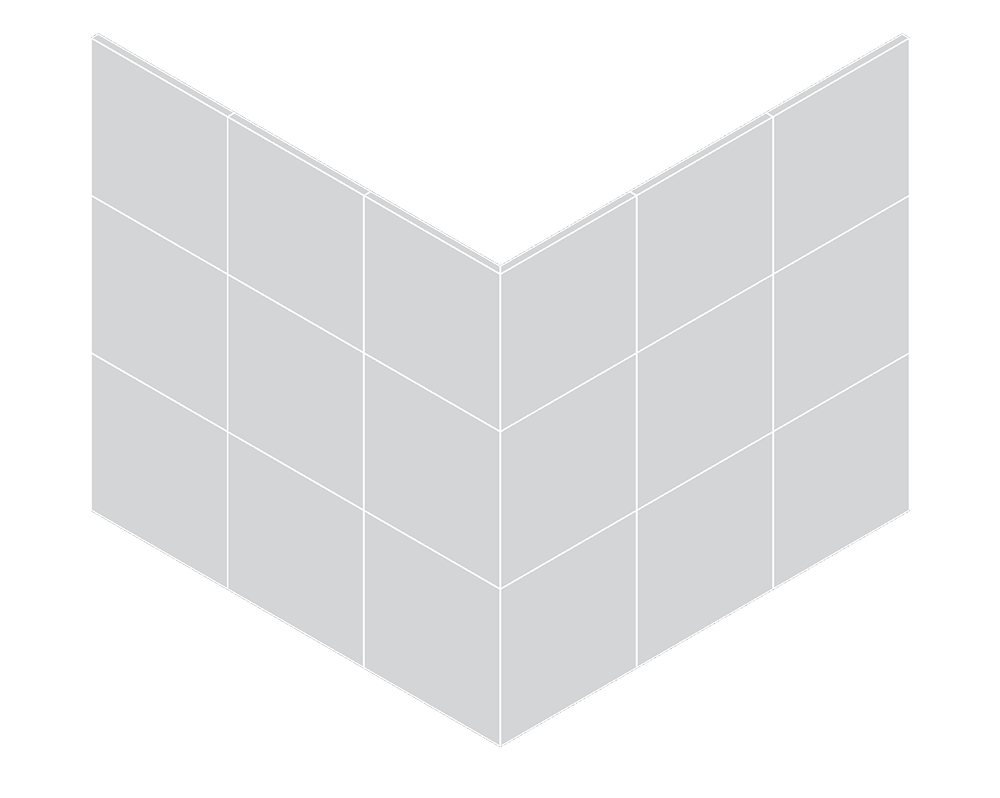

90 ° corner

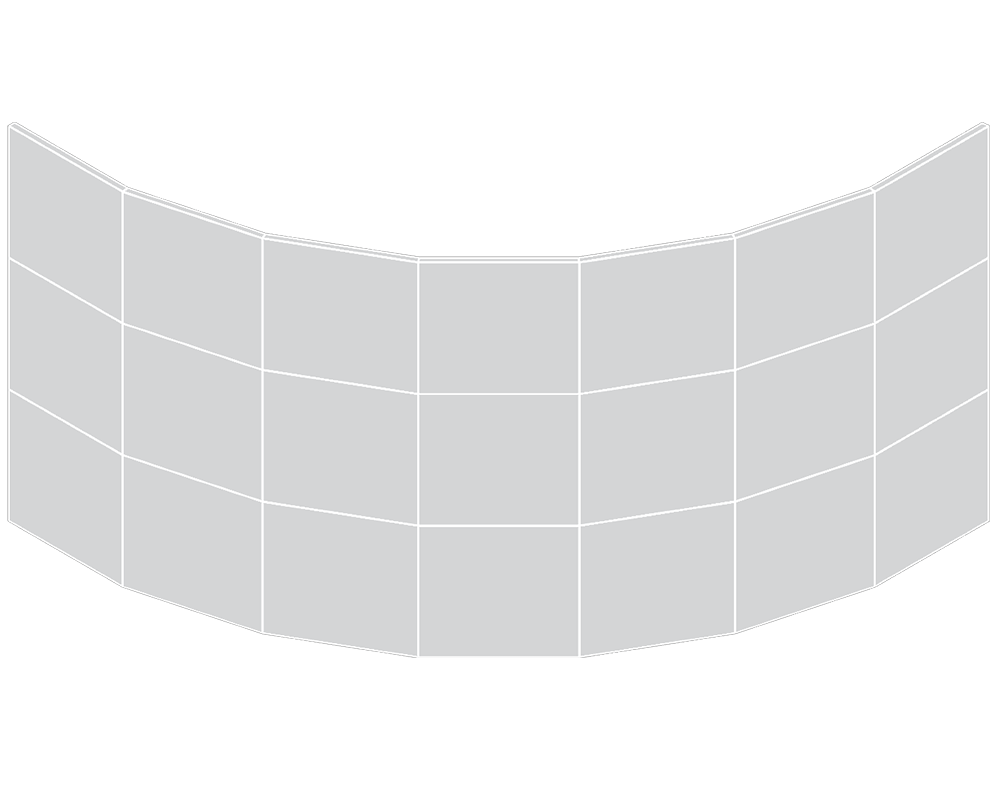

Curved corner

(Concave, convex)

Display for outdoor applications

Extreme outdoor stability

Explorer III is built for structural strength and impact resistance. Both module and power box are encased in die-cast aluminum shells, protecting them from shocks, vibrations, and physical damage.

Moister-proof
Heavy rain resistance

Temperature resistance
Operates in both high and low temperatures

High humidity
Well operates in high humidity

Salt-proof
Salt spray test prooved

IP65 Weather Resistant

The Explorer III is built to withstand the most extreme outdoor conditions. Its fully sealed die-cast aluminum construction, combined with an IP65-rated waterproof and corrosion-resistant design, offers comprehensive protection against rain, humidity, dust, and airborne particles. Whether facing heavy storms, coastal air, or constant exposure to the elements, it ensures stable, long-lasting performance in any weather scenario.

Sunlight viewable Image

With Explorer III brightness ratings and high contrast ratio, contents can easily be viewed in direct sunlight applications, such as outdoor advertising, billboards and building exteriors.
