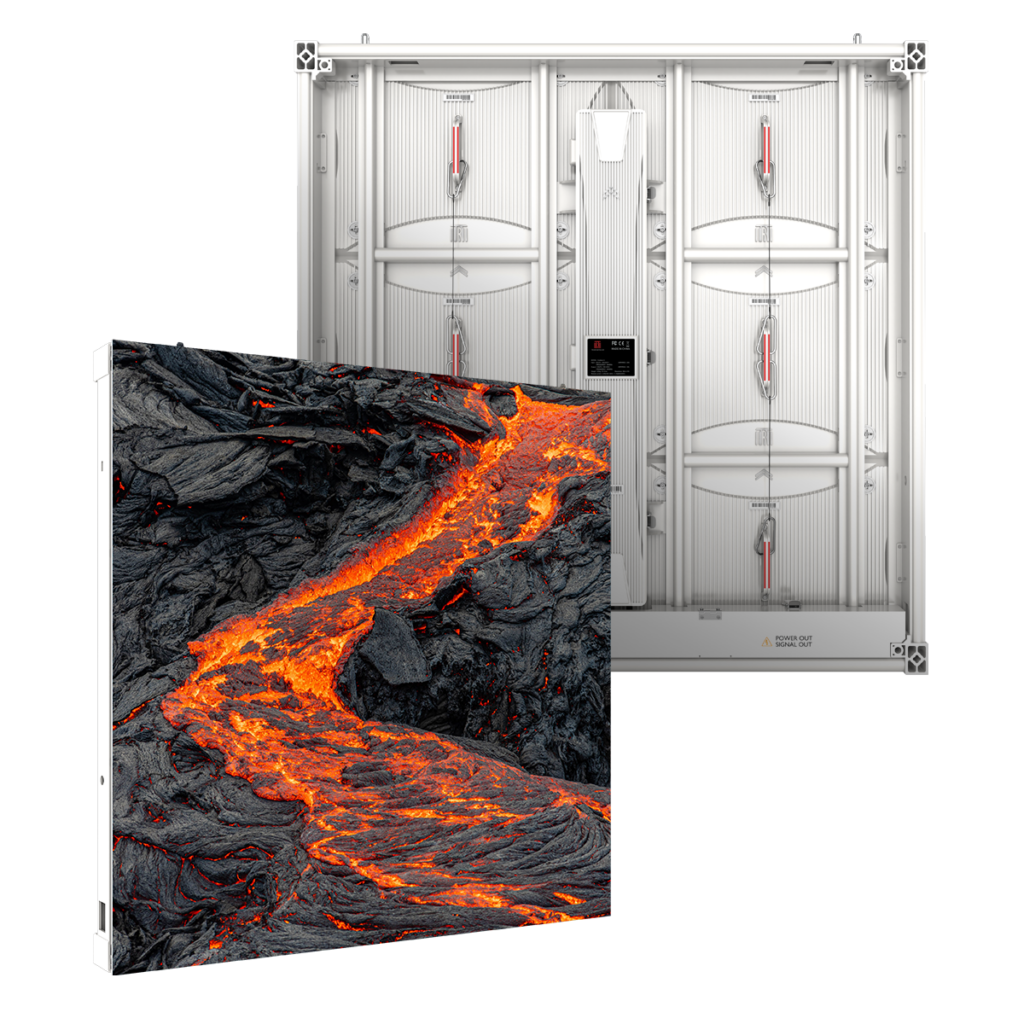

Evoque

For outdoor fixed installations

Outdoor SMD

Technology

5.7 / 6.6 / 8.0 / 10.0

Pixel pitch, mm

960 x 960 x 89

Cabinet size (W*H*D), mm

8,000

Brightness, nits

IP65 / IP65

IP Rating Front / Rare

600 W / 200 W

Power consumption max/avg. (per m2)

140° / 140°

Viewing angle (H/V)

Applications

Urban billboard

Hier klicken

Stadiums and sport facilities

Hier klicken

DOOH

Hier klicken

Adventure park

Hier klicken

Urban digital displays

Hier klicken

Smart city display

Hier klicken

highway billboard

Hier klicken

Large-pitch Outdoor SMD remains the proven technology with years of successful deployments in outdoor advertising projects, it provides reliable performance for large-format displays and long viewing distances.

Technology overview

SMD (Surface Mounted Device) technology lies at the heart of our commitment to quality at Transtech. Teaming up with Multicolor or Kinglight, we lead the charge in developing LEDs renowned for excellence. Our LEDs boast unparalleled reliability with minimal failure rates, delivering precise color accuracy and exceptional durability. Enhanced by a unique Isolated Island design, these LEDs are resistant to humidity, ensuring a significantly extended lifespan. Discover the pinnacle of LED technology with Transtech.

LED CHIP

Resin Seal

PCB

Substrat

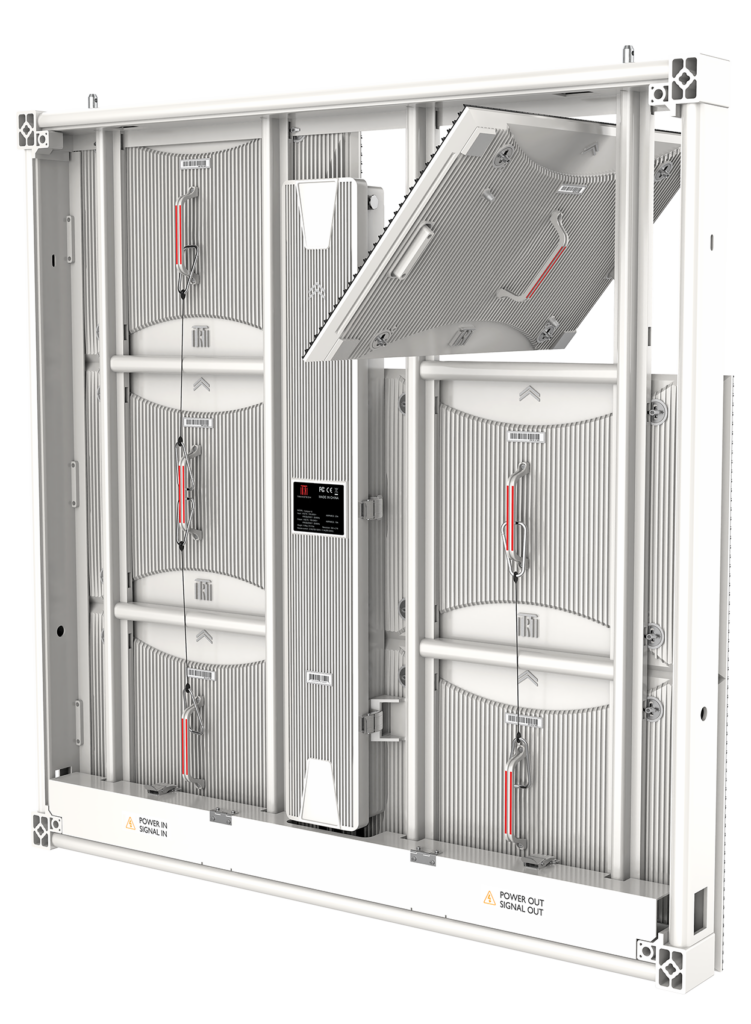

Cabinet design

Easy and convenient maintenance

The cabinet features both front and rear access for easy installation and maintenance. It is made of CNC die-casting aluminum, ensuring efficient heat dissipation. The hidden internal cabling contributes to a clean and streamlined design. This allows for one-key fast lock installation, providing a safe and stable setup. The integrated design guarantees quick, high-precision, uniform, and seamless splicing.

Installation configurations

The Evoque series can be easily installed in both standard and corner configurations, providing a flexible solution for various design requirements.

Standard configuration

90 ° corner

Display for outdoor applications

No fear of extreme weather

Evoque was built to withstand harsh and unforgiving environments. Module and power box both are protected by
die-cast aluminum shells, resisting intentional or unintentional damage.

Moister-proof
Heavy rain resistance

Temperature resistance
Operates in both high and low temperatures

High humidity
Well operates in high humidity

Salt-proof
Salt spray test prooved

IP65 Weather Resistant

Evoque is built to withstand the most extreme outdoor conditions. Its fully sealed die-cast aluminum construction, combined with an IP65-rated waterproof and corrosion-resistant design, offers comprehensive protection against rain, humidity, dust, and airborne particles. Whether facing heavy storms, coastal air, or constant exposure to the elements, it ensures stable, long-lasting performance in any weather scenario.

Sunlight viewable Image

With Evoque brightness ratings and high contrast ratio, contents can easily be viewed in direct sunlight applications, such as outdoor advertising, billboards and building exteriors.
